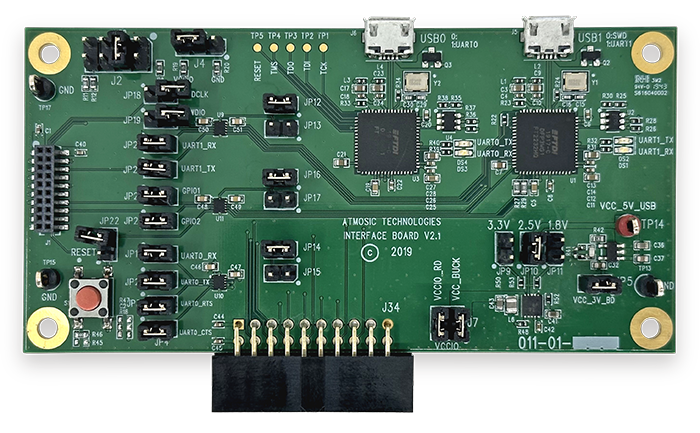

Atmosic Interface Board

The Atmosic Interface Board provides a host computer access to some commonly needed interfaces on an Atmosic chip-based DUT. This board is designed for use with Atmosic ATM2 and ATM3 EVKs. This board can also be used with a customized designs featuring all Atmosic product families.

The Atmosic Interface Board supports the following features:

• Serial Wire Debug (SWD)
• Debug UART
• 4-wire HCI UART or 2-wire for Direct Test Mode (DTM)
• 2 GPIOs
• Power Down or Reset Signal

Part Number: ATMIOB

Documentation:

User Guides:

Development Files:
