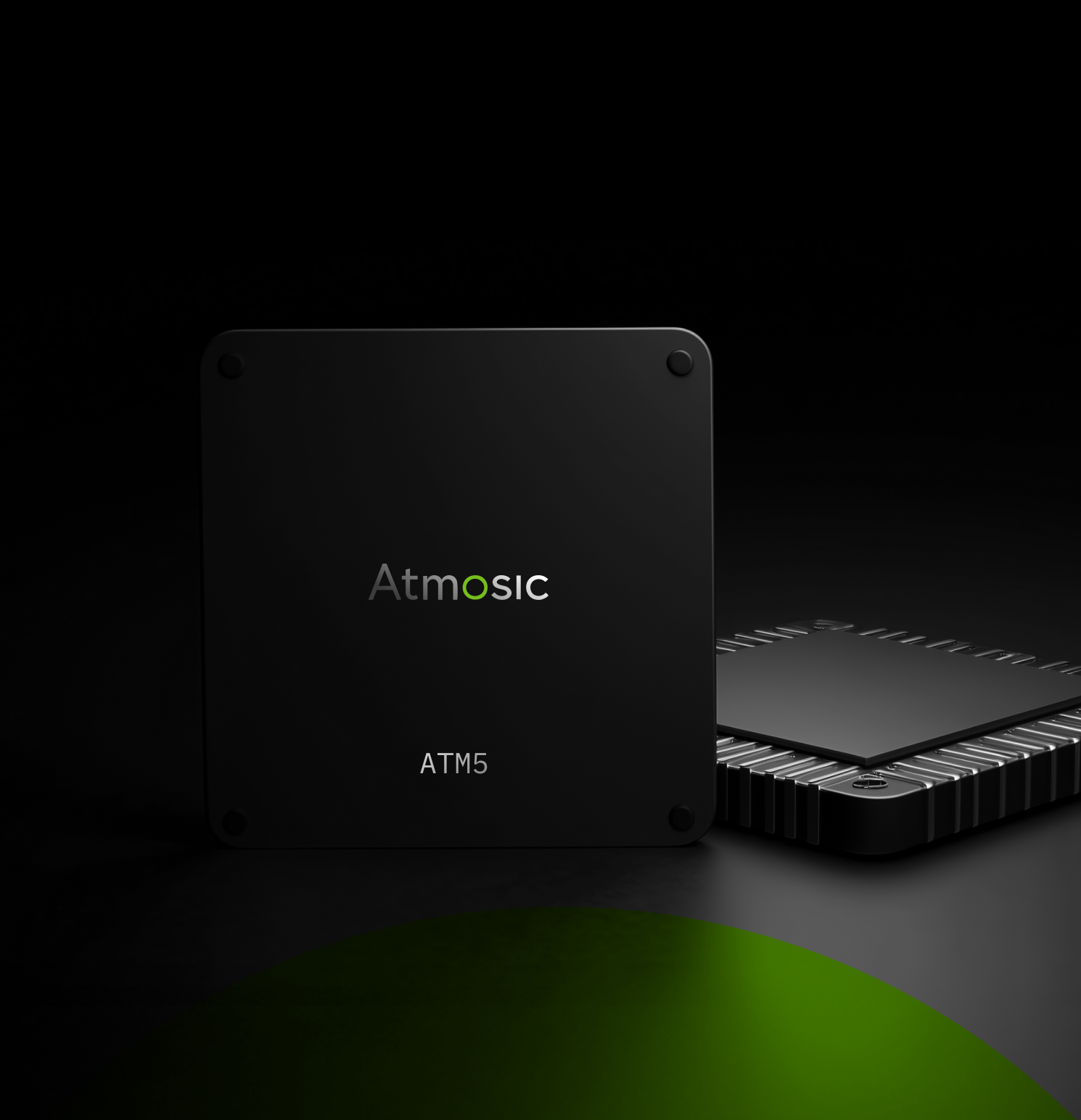

The ATM5 Series
ATM5
The ATM53, ATM53e and ATM52 are members of the new ATM5 series that supports both Bluetooth 6.3 (Channel Sounding with Inline PCT Transfer) and Bluetooth 5.4, for Consumer and Enterprise Asset Tracking, and IoT applications.

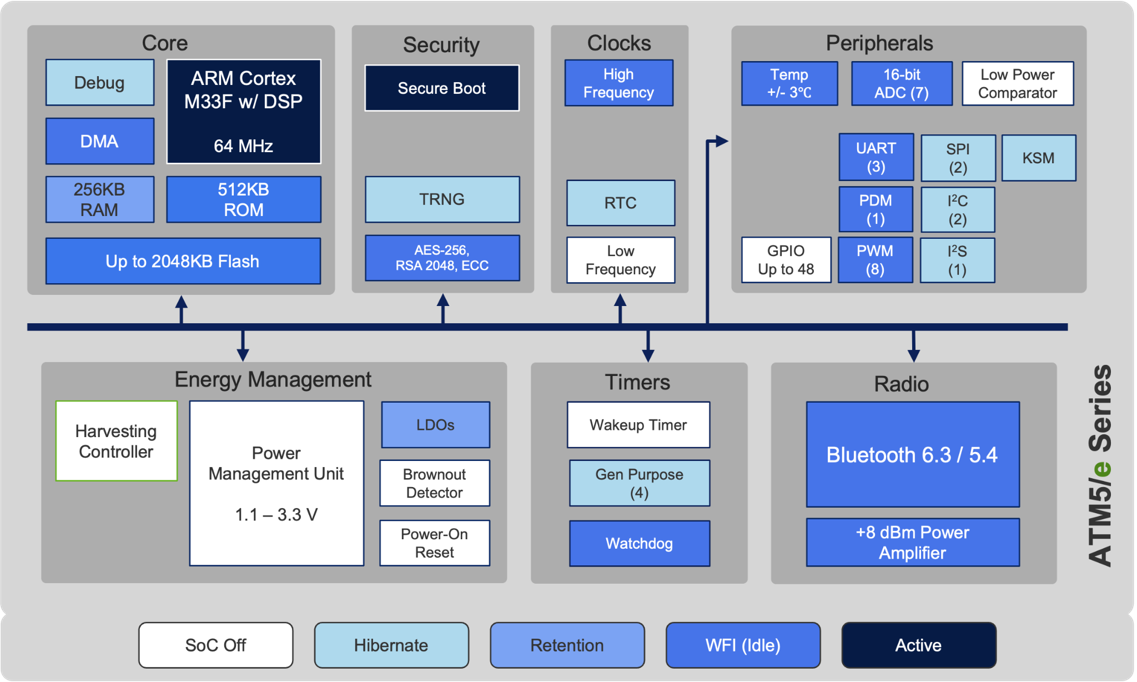

The SoC family integrates the radio along with an ARM® Cortex® M33F application processor, up to 256 KB Random Access Memory (RAM), 512 KB Read-Only Memory (ROM), 1024 or 2048 KB of nonvolatile memory (NVM).
The family also supports the ARM® TrustZone® enabled security features, and state-of-the-art power management to enable maximum lifetime in battery-operated devices and integrated energy harvesting controller capabilities.
The ultra low power ATM5 series SoCs, integrates Channel Sounding with Inline PCT, aligned with latest iOS and Android specifications, ideal for Asset Tracking and Internet-of-Things (IoT) segments.
Support for low duty cycle operation allows systems to run for significantly longer periods without battery replacement. ATM53 series support Bluetooth 6.3 Channel Sounding with Inline PCT Transfer which further reduces power consumption in Channel Sounding operations. In addition, this series of SoCs from Atmosic supports operation from energy harvesting sources, including photovoltaic.
Communications
- Bluetooth 6.3 Channel Sounding with Inline PCT Transfer (ATM53 Series)
- Bluetooth 5.4 (ATM52 Series)
- Bluetooth 2 Mbps, 1 Mbps 500 kbps, and 125 kbps Coded PHY rates
CPU and Memory
- 64 MHz ARM® Cortex® M33F CPU with DSP
- 512 KB ROM, 256 KB RAM, 1024 or 2048 KB NVM
- Retention RAM configuration: 16KB to 256KB in 16 KB step sizes
- 32 MHz / Optional 32.768 kHz Crystal Oscillator
Energy Harvesting (ATM53e devices only)
- Harvesting Controller Supports photovoltaic energy source and external energy storage
Security
- ARM® TrustZone®, HW Root of Trust, Secure Boot, Secure Execution & Debug
- AES-128/256, SHA-2/HMAC 256 Encryption/Cryptographic Hardware Accelerators
- True random number generator (TRNG)
Enterprise Segment
- Asset Tracking
- Logistical Management
- Industrial IoT Sensors
- Remote Monitoring
- Medical Equipment Tracking
- Patient and Staff Tracking
Consumer Segment
- Personal Asset Tracker
- Embedded Tag and Tracker
- Advanced Remote Control
- Environmental Control
- Advanced Home Automation
- Consumer IoT
- Patient Health Monitor
