The ATM34 Series

The ATM34 and ATM34e are members of the new ATM34/e series that supports both Bluetooth LE and/or 802.15.4 for highly robust command/control or home automation type protocols.

the atm34 series

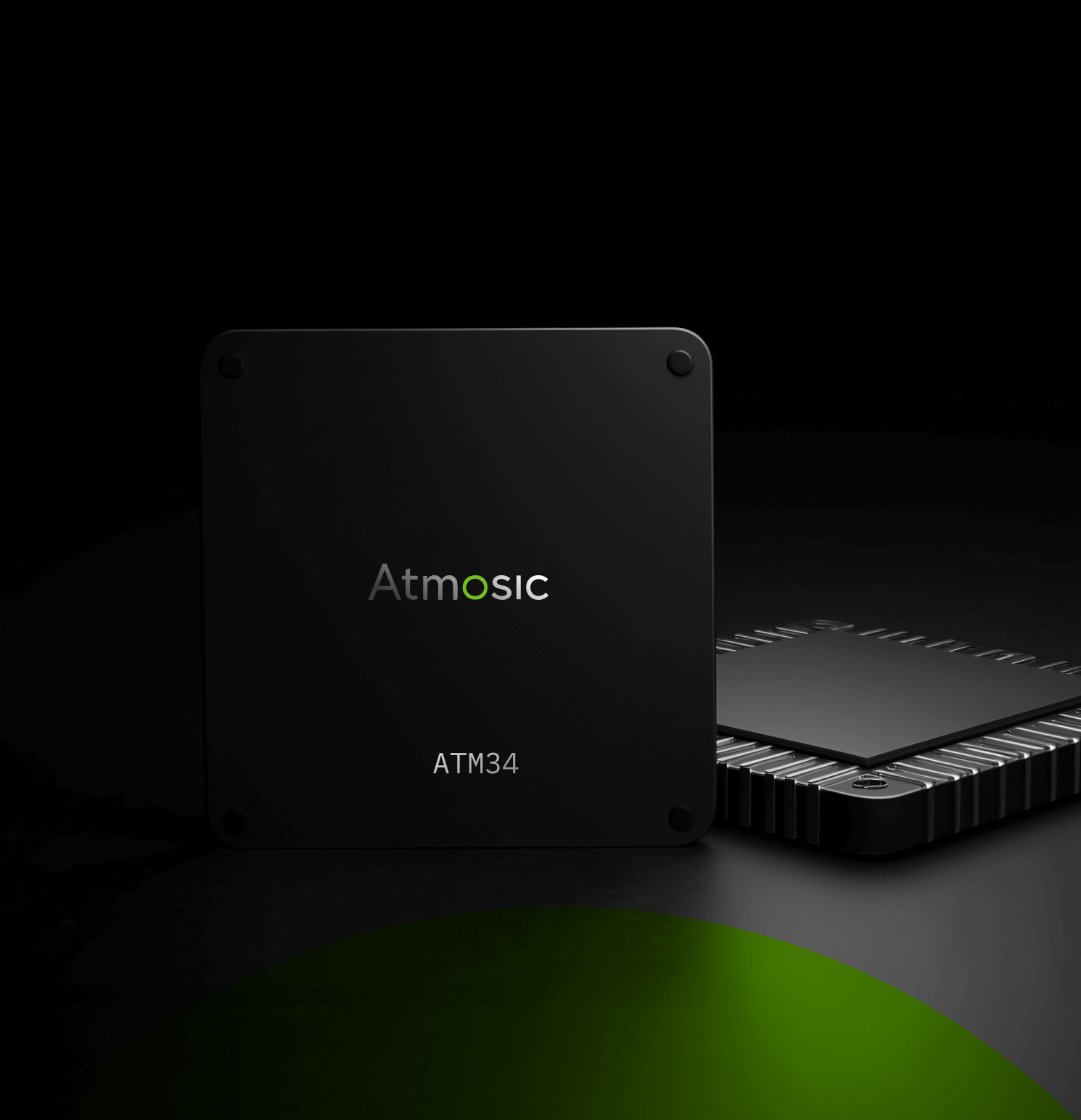

ATM34

The ATM34 and ATM34e are members of the new ATM34/e series that supports both Bluetooth LE and/or 802.15.4 for highly robust command/control or home automation type protocols.

The SoC family integrates the radio along with an ARM® Cortex® M33F application processor, up to 256 KB Random Access Memory (RAM), 64 KB Read-Only Memory (ROM), 512-2560 KB of nonvolatile memory (NVM).

The family also supports the ARM® TrustZone® enabled security features, and state-of-the-art power management to enable maximum lifetime in battery-operated devices and integrated energy harvesting capabilities

The extremely low power ATM34 and ATM34e series SoCs, with a 0.95 mA radio receiver and a 2.1 mA radio transmitter power consumption, is designed to extend battery life for the Internet-of-Things (IoT) markets.

Support for low duty cycle operation allows systems to run for significantly longer periods without battery replacement. In addition, this series of SoCs from Atmosic supports operation from energy harvesting sources, including RF, photovoltaic, TEG (Thermoelectric generator), and motion. Innovative wake-up mechanisms are supported to provide options for further power consumption reduction.

Atmosic logo

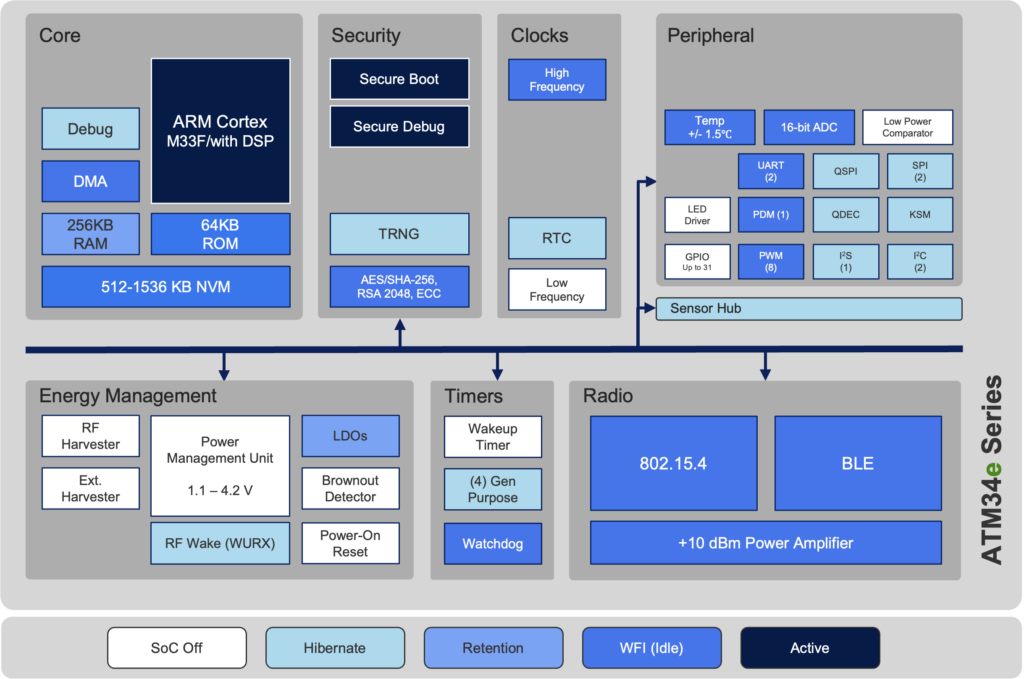

the atm34 series

Communications

  • Bluetooth Low-Energy 6.0 compliant
  • Bluetooth 2 Mbps, 1 Mbps 500 kbps, and 125 kbps Coded PHY rates
  • 802.15.4

CPU and Memory

  • 64 MHz ARM® Cortex® M33F CPU with DSP
  • 64 KB ROM, 256 KB RAM, 512-2560 KB NVM
  • Retention RAM configuration: 16KB to 256KB in 16 KB step sizes
  • 16 MHz / Optional 32.768 kHz Crystal Oscillator
  • Sensor Hub

Energy Harvesting (ATM34e devices only)

  • On-chip RF Energy Harvesting
  • Supports photovoltaic, thermal, motion and other energy harvesting technologies
  • External Harvesting/Storage Interface

Security

  • ARM® TrustZone®, HW Root of Trust, Secure Boot, Secure Execution & Debug
  • AES-128/256, SHA-2/HMAC 256 Encryption/Cryptographic Hardware Accelerators
  • True random number generator (TRNG)

Industrial and Enterprise

  • Industrial IoT Sensors
  • Remote Monitors

Healthcare

  • Health monitors
  • Sports and Fitness

SmartHome

  • Home Automation
  • Advanced Remote Control
  • Human Interface Devices (HID)
  • Smart Sensors

ATM34 Series Feature Comparison

Series Part Number Protocols Energy Harvesting NVM WuRx Product Line Size (mm) Package Pin Count Delivery
ATM34 ATM3405-5YCABV-SR BLE No 2560 KB No Wireless MCU 4x4 BGA 93-ball Small 7" Reel, 1K devices/reel
ATM34 ATM3405-5PCAQK-SR BLE No 512 KB No Wireless MCU 5x5 QFN 40-Pin Small 7" Reel, 1K devices/reel
ATM34 ATM3405-5WCAQK-SR BLE No 1536 KB No Wireless MCU 5x5 QFN 40-Pin Small 7" Reel, 1K devices/reel
ATM34e ATM3430E-5YCAQN-TR BLE Yes 2560 KB Yes Wireless MCU 7x7 QFN 56-Pin Standard 13" Reel, 2.5K devices/reel
