The ATM33 Series

The ATM3330e/ATM3330 are part of a family of extreme low-power Bluetooth® 5.3 system-on-chip (SoC) solutions.

the atm33 series

ATM33

The ATM3330e/ATM3330 are part of a family of extreme low-power Bluetooth® 5.3 system-on-chip (SoC) solutions.

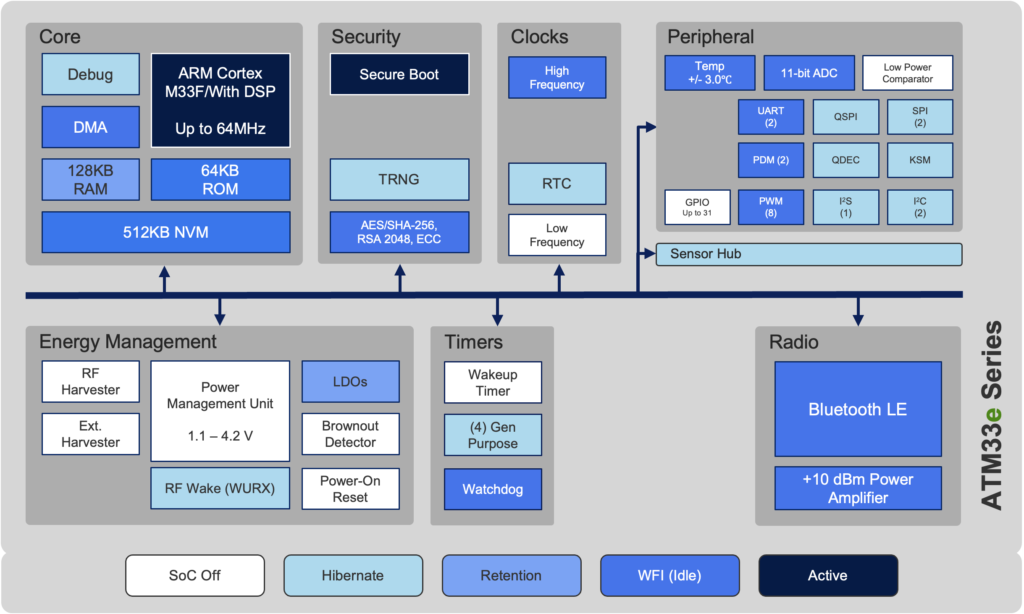

This Bluetooth Low Energy SoC integrates a Bluetooth 5.3 compliant radio with ARM® Cortex® M33F application processor, 128 KB Random Access Memory (RAM), 64 KB Read-Only Memory (ROM), 512 KB nonvolatile memory (NVM), with ARM® TrustZone® enabled security features, and state-of-the-art power management to enable maximum lifetime in battery-operated devices.

The extremely low power ATM3330e/ATM3330 SoC, with a 0.7 mA radio receiver and a 2.1 mA radio transmitter power consumption, is designed to extend battery life for the Internet-of-Things (IoT) markets

Support for low duty cycle operation allows systems to run for significantly longer periods without battery replacement. In addition, this series of SoCs from Atmosic supports operation from energy harvesting sources, including RF, photovoltaic, TEG (Thermoelectric generator), and motion. Innovative wake-up mechanisms are supported to provide options for further power consumption reduction.

Atmosic logo

the atm33 series

Bluetooth LE

  • Bluetooth Low-Energy 5.3 compliant
  • 2 Mbps, 1 Mbps 500 kbps, and 125 kbps PHY rates
  • Supports Bluetooth Angle-of-Arrival (AoA) and Angle-of-Departure (AoD) direction finding

CPU and Memory

  • 64 MHz ARM® Cortex® M33F CPU with DSP
  • 64 kB ROM, 128 kB RAM, 512 kB NVM
  • Retention RAM configuration: 16 kB to 128kB in 16 kB step sizes
  • 16 MHz / Optional 32.768 kHz Crystal Oscillator
  • Sensor Hub

Energy Harvesting (ATM33e devices only)

  • On-chip RF Energy Harvesting
  • Supports photovoltaic, thermal, motion, and other energy harvesting technologies
  • External Harvesting/Storage Interface

Security

  • ARM® TrustZone®, HW Root of Trust, Secure Boot, Secure Execution & Debug
  • AES-128/256, SHA-2/HMAC 256 Encryption/Cryptographic Hardware Accelerators
  • True random number generator (TRNG)

Industrial and Enterprise

  • Industrial IoT Sensors
  • Remote Monitors

Healthcare

  • Health Monitors
  • Sports and Fitness

Home

  • Advanced Home Automation
  • Advanced Remote Control
  • Human Interface Devices (HID)
  • Entertainment

Personal

  • Gaming
  • Wearables

ATM33 Series Feature Comparison

Series Part Number Energy Harvesting Ext. Storage WuRx Product Line Size (mm) Package Pin Count Delivery
ATM33 ATM3325-5DCAQK-SR No No No Wireless MCU 5x5 QFN 40-Pin Small 7" Reel, 1K devices/reel
ATM33 ATM3325-5LCAQK-SR No Yes No Wireless MCU 5x5 QFN 40-Pin Small 7" Reel, 1K devices/reel
ATM33 ATM3330-5DCAQN-TR No No Yes Wireless MCU 7x7 QFN 56-Pin Standard 13" Reel, 2.5K devices/reel
ATM33 ATM3325-5DCACM-SR No No No Wireless MCU 2.61x2.43x0.38 WLCSP 49-pin Small 7" Reel, 2K devices/reel
ATM33e ATM3330E-5DCAQN-TR Yes No Yes Wireless MCU 7x7 QFN 56-Pin Standard 13" Reel, 2.5K devices/reel

* Note: Extended Storage refers to integrated non-volatile data storage capabilities in addition to the base NVM storage.

ATM33 Series Kits

Device Kit Part Number Energy Harvesting Type Description
ATM3325 ATMEVK-3325 Yes Development Kit Evaluation and development kit for ATM3325
ATM3325 ATMTAG-3325 No Reference Design Tag Reference Design
ATM3325 ATMTAG-EXT-3325 No Reference Design Tag Reference Design (with IoT Sensor Board Breakoff)
ATM3330 ATMEVK-3330 No Development Kit Evaluation and development kit for ATM3330
ATM3330e ATMEVK-3330e Yes Development Kit Evaluation and development kit for ATM3330e
ATM3330e ATMRFS-M22xx Yes Reference Design 900MHz RF Source for RF Energy Harvesting
ATM3330e ATMKBD-33 Yes Reference Design PV Keyboard Reference Design
ATM3330e ATMRC-33 Yes Reference Design PV Remote Control Reference Design
All ATMAOA-33-KIT Yes Development Kit Evaluation and development kit for AoA Direction Finding
All ATMRPB No Accessories Reference Design Programming Board
